Lead X-Ray Shielding Glass
Additional Information

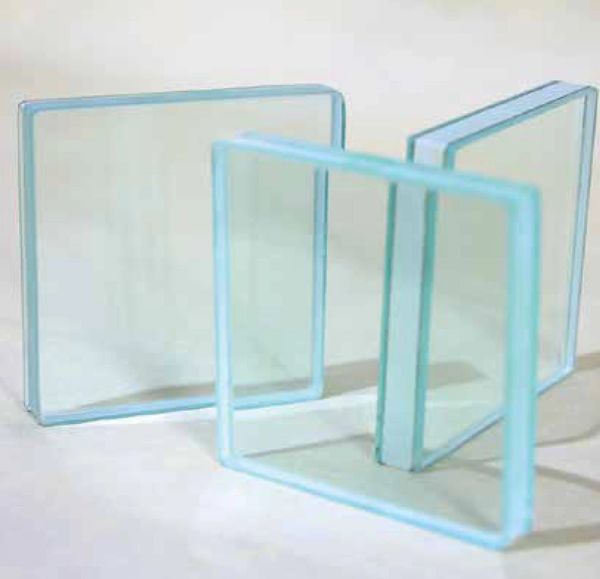

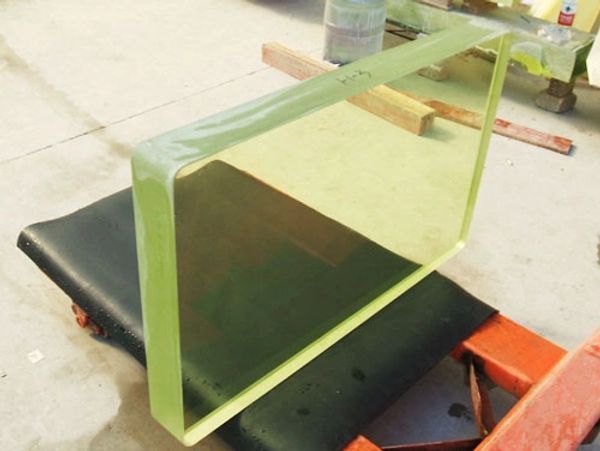

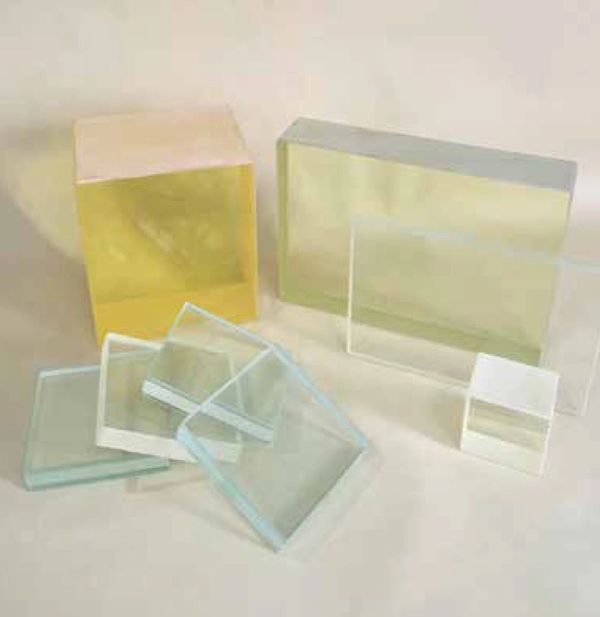

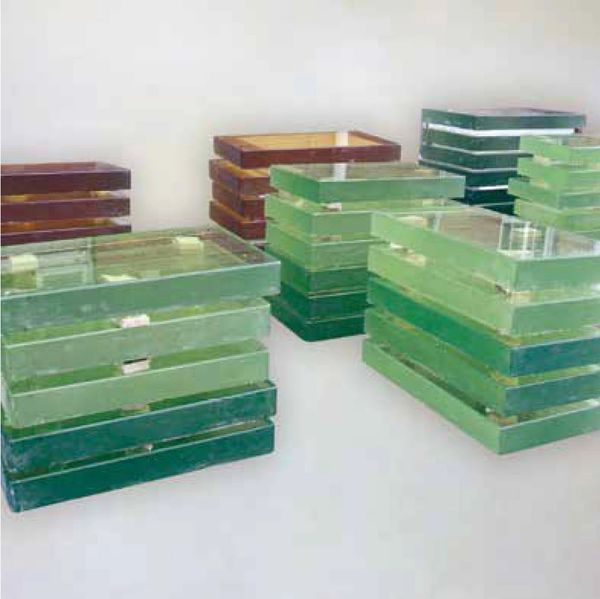

Lead X-ray Shielding Glass, also referred to as radiation shielding glass or lead glass, is a leaded glass that provides shielding protection by absorbing the energy of radiation. The shielding effect is created by a high concentration of lead and barium and the glass can be optically clear or have a slight yellow tint.
The lead equivalent in mm or PB is the protective effect of the glass. A lead glass rated 2.2mmpb has the lead equivalent of 2.2mm lead thickness. Lead glass is a requirement to get a clear view and when radiation shielding is a priority.

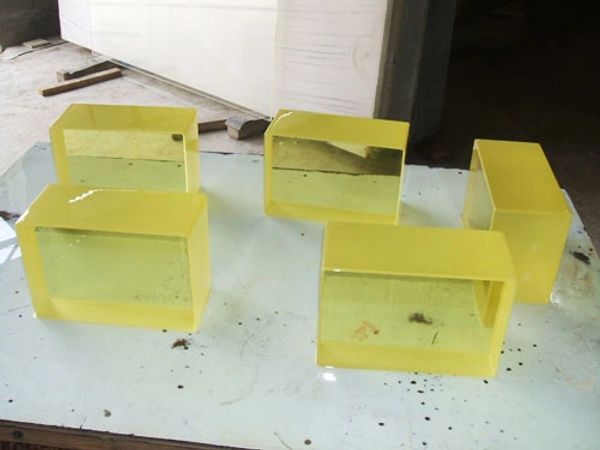

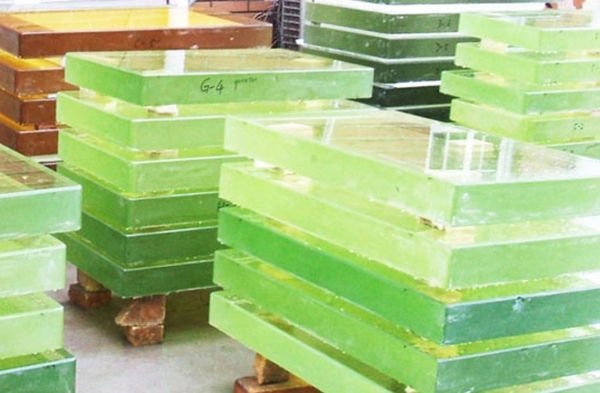

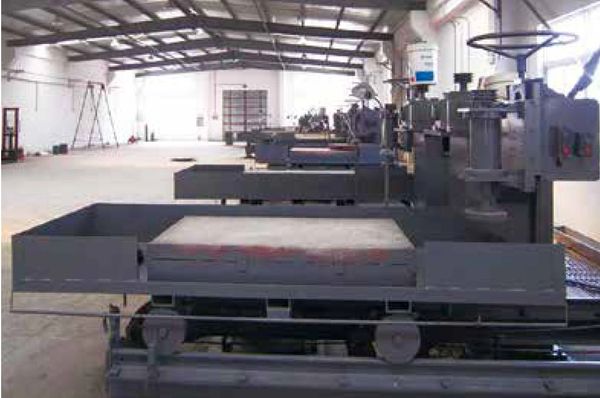

Lead glass is manufactured by casting the molten lead glass into a mould and once the glass has cooled and hardened, it is then ground on both surfaces and then polished to obtain the same finish as polished plate glass. The surfaces are extremely soft and should be handled with the utmost of care.
Get a Quote Here
To get a quote on your next Lead X-Ray Shielding Glass project, simply provide us your estimated quantity, sizes and types of lead x-ray shielding glass you're after and we will get right onto it!
If you‘re unsure of any of the above, you can give us a call and we can help guide you through what you need.
Lead X-Ray Glass Specification
SPECIFICATION:
• Maximum Size: 1200 x 2400mm
• Glass thickness / Lead rating:
8mm - 1.6mmPB
10mm - 2.0mmPB
12mm - 2.4mmPB
15mm - 3.0mmPB
18mm - 3.6mmPB
20mm - 4.0mmPB
25mm - 5.0mmPB
• A maximum thickness of 120mm thick can be manufactured under certain size limitations

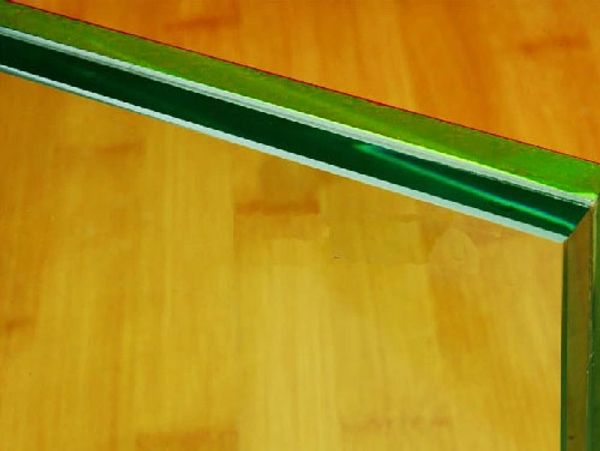

• Can be laminated to form Laminated Safety Lead Glass
APPLICATIONS:

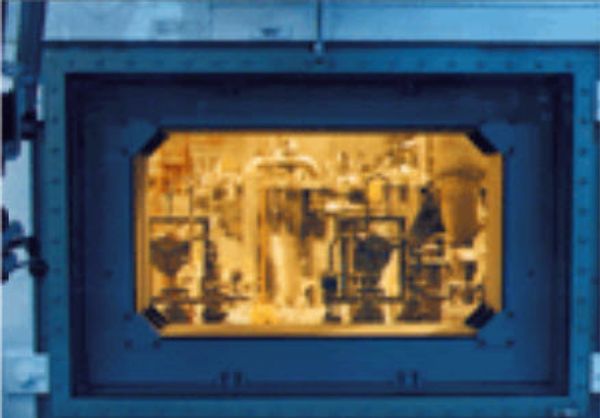

X-ray rooms, Operating theatres, Dental clinics, VET clinics, Research and medical laboratories, Hospitals, Nuclear facilities, Airport security X-ray screens
