Laminated Glass

Additional Information

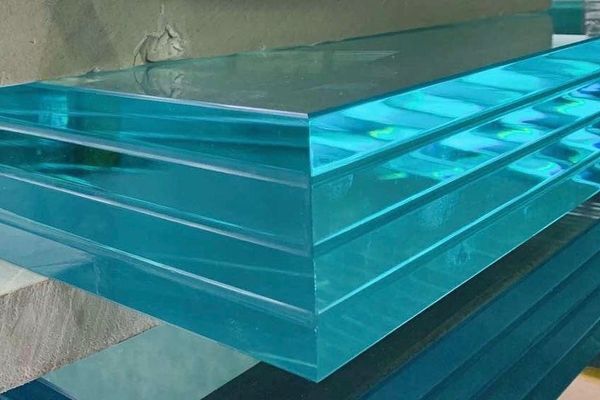

LAMINATED GLASS

Laminated Glass is made up of two or more layers of glass permanently bonded together with an interlayer (PVB / SGP / EVA) via a controlled, highly pressurized and industrial heating process. The lamination process results in the glass panels holding together in the event of breakage, reducing the risk of harm. Laminated Glass is classified as Grade A Safety Glass. There is several laminated glass types manufactured using different glass and interlayer options that produce a variety of strength and security requirements.


Characteristics of Laminated Glass:


High Security

When laminated glass is attacked by outside force, it's hard to penetrate because the interlayer film has strong tenacity and can absorb and weaken a mass of striking energy. Even if it's broken, the pieces will stick to the interlayer and not scatter.


Sound Insulation

The interlayer film is a type of organic material and it can help block sound waves. Therefore, laminated safety glass offers better sound insulation performance than ordinary monolithic glass with the same thickness.


Anti-Ultraviolet

Most laminated glass can absorb 99% of incoming ultraviolet radiation. It protects the furniture or finished from discoloring and damage caused by the sun.


Energy-saving

The interlayer film impedes the transmission of solar heat and reduces cooling loads.



Get a Quote Here

To get a quote on your next Laminated  Glass project, simply provide us your estimated quantity, sizes and types of laminated glass you're after and we will get right onto it!


If you‘re unsure of any of the above, you can give us a call and we can help guide you through what you need.

Get Quote

Laminated Glass Specification

Specification:

• Maximum Size: 3600 x 18000mm

• 0.38 to 3.04mm PVB, EVA & SGP interlayers

• 6.38, 8.38, 10.38, 11.52, 12.38, 13.52, 17.52, 21.52, 25.52mm standard glass thickness available - many more by request

• available colors - clear, ultra clear, grey, bronze, blue, green and many custom colors are available

• You can make laminated glass in float, toughened, curved & insulated glass

• You can make any combination that is required, up to 10 layers thick and up to 100+mm thick

• The multi-ply laminated glass can be used to make many types of other glass listed below

Applications:

Curtain walls, Windows, Shop fronts, Balustrade, Skylights, Doors, Showcases,  Shower screens, Furniture


Special Multi-Ply Applications:

Bullet resistant, Blast resistant, Hurricane resistant, Burglar resistant,  Attack resistant, Jail glass, Pool/Spa glass, Large aquariums,  Flooring, Stair Treads, Roofs, Heavy duty balustrades

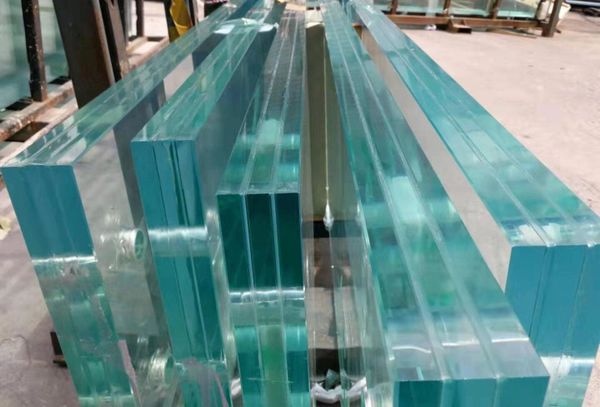

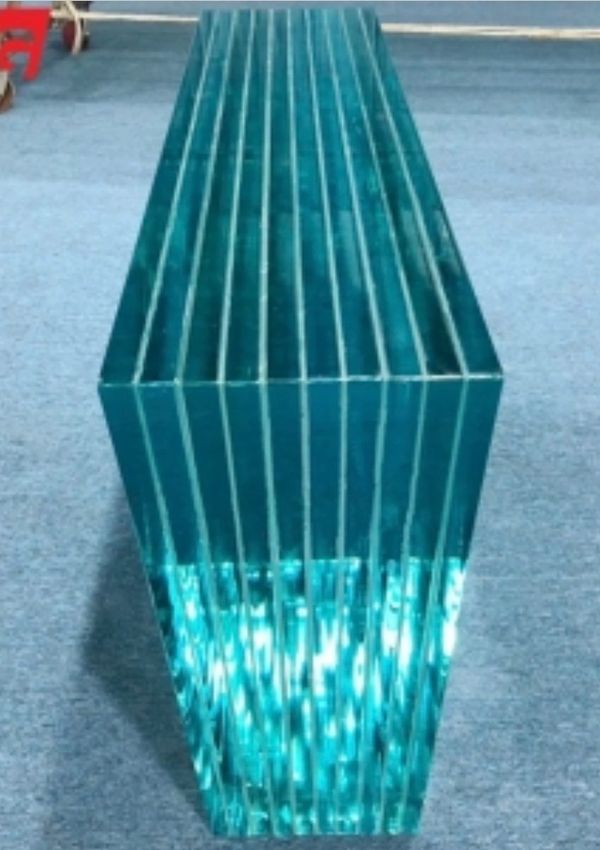

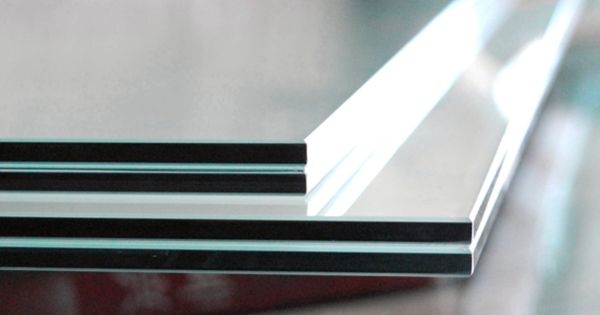

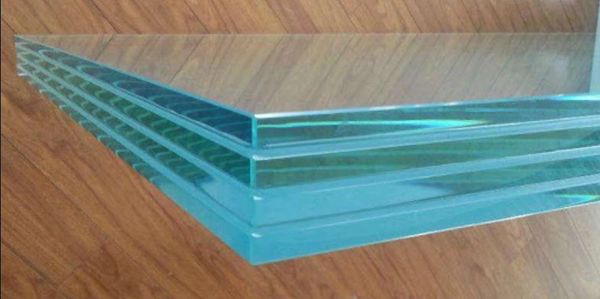

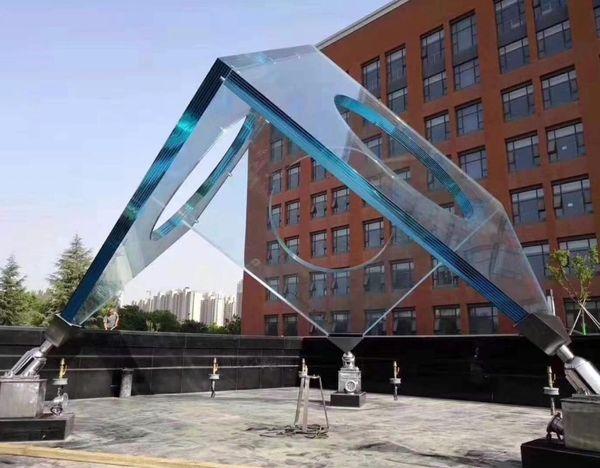

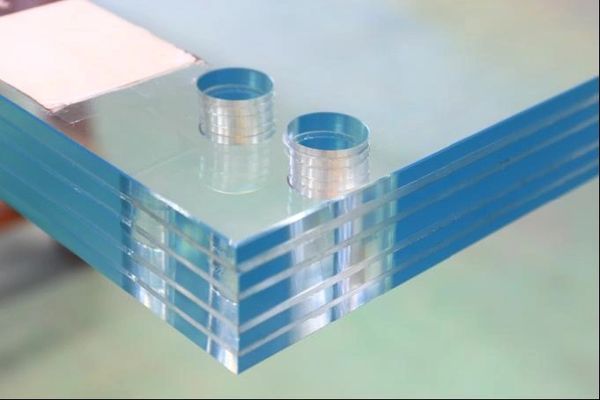

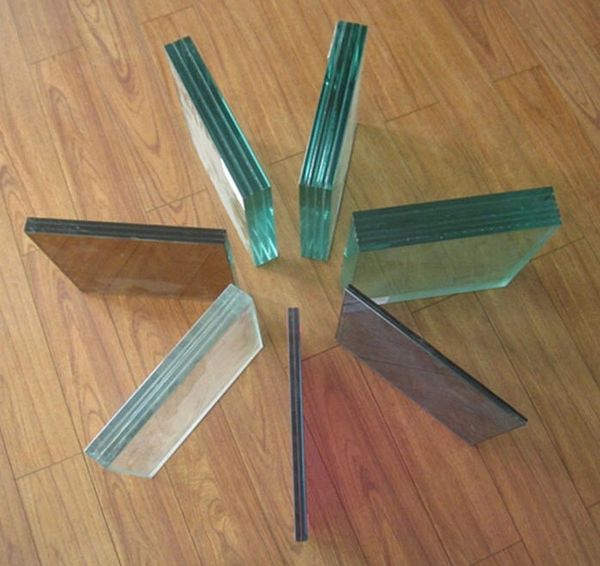

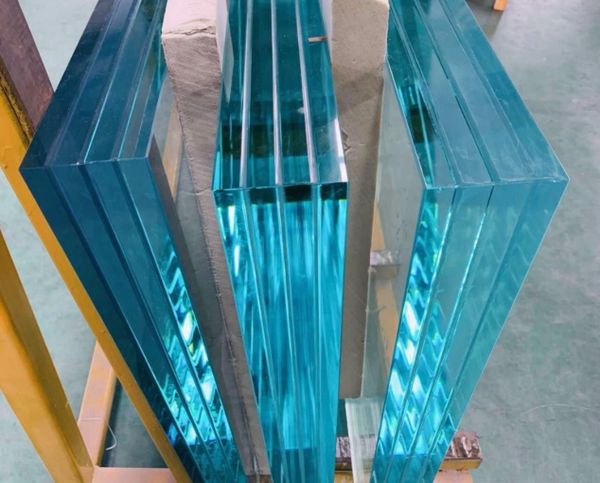

Photo Gallery

Video

Downloads

Files coming soon.
