CURVED & BENT GLASS
Hot curved glass is made of float glass which is firstly heated to soften point on metal mould and then curved to shape by weight of glass itself and outside force, and finally cooled down.
If required by application, curved insulating glass, curved laminated glass, or curved tempered laminated coated insulating glass by use of bendable coated glass, can also be manufactured.
To get a quote on your next Curved & Bent Glass project, simply provide us your estimated quantity, sizes and types of curved glass you're after and we will get right onto it!
If you‘re unsure of any of the above, you can give us a call and we can help guide you through what you need.
• Maximum size available:
3600 x 18000mm - Radius >3000mm - single curved
1600 x 2400mm - Radius >210mm - single curved
3000 x 5000mm - double curved
• 3, 4, 5, 6, 8, 10, 12, 15, 19, 22, 25mm glass thickness available
• 6.76, 8.76, 10.76, 11.52, 12.76, 13.52, 17.52, 21.52, 25.52mm & custom glass thickness available

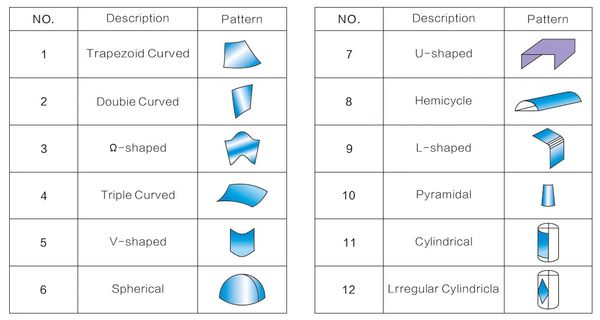

• Any shape is available, such as S form, U form, right-angle and spherical surface, etc..
• available colors - clear, ultra clear, grey, bronze, blue, green and others
• You can make curved glass in float, toughened, laminated & insulated glass

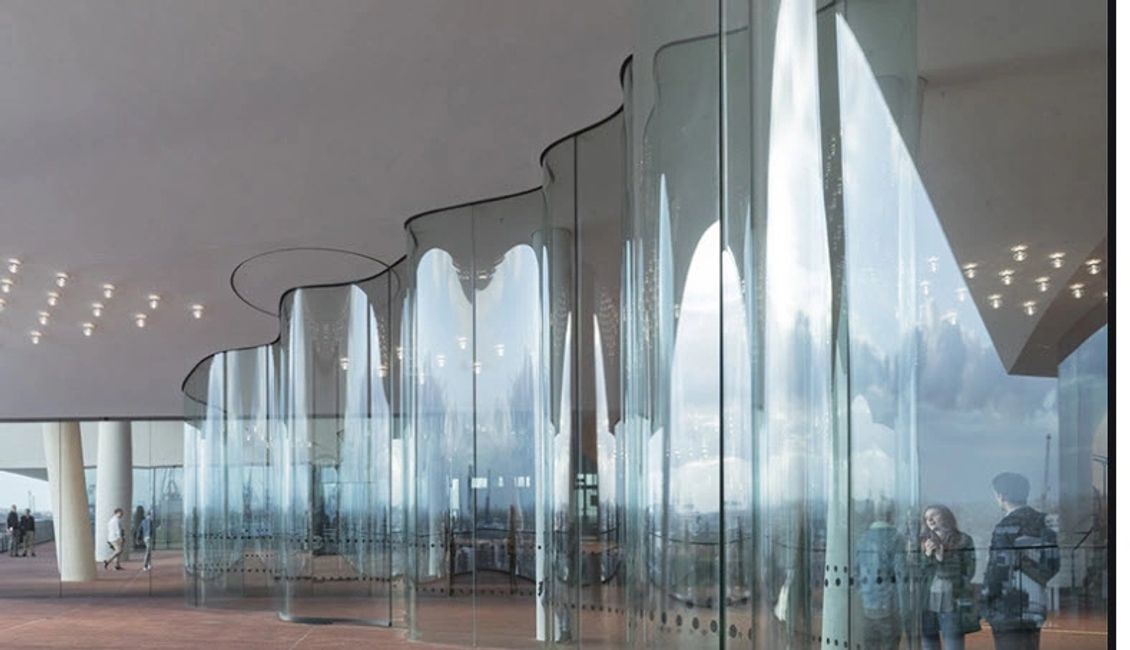

curtain wall with curved structure, shopfronts, balustrades, skylights, sightseeing elevator, indoor glass partition with curve structure,
glass enclose etc
